High-Speed, High-Precision CO2 / Fiber Laser Technology

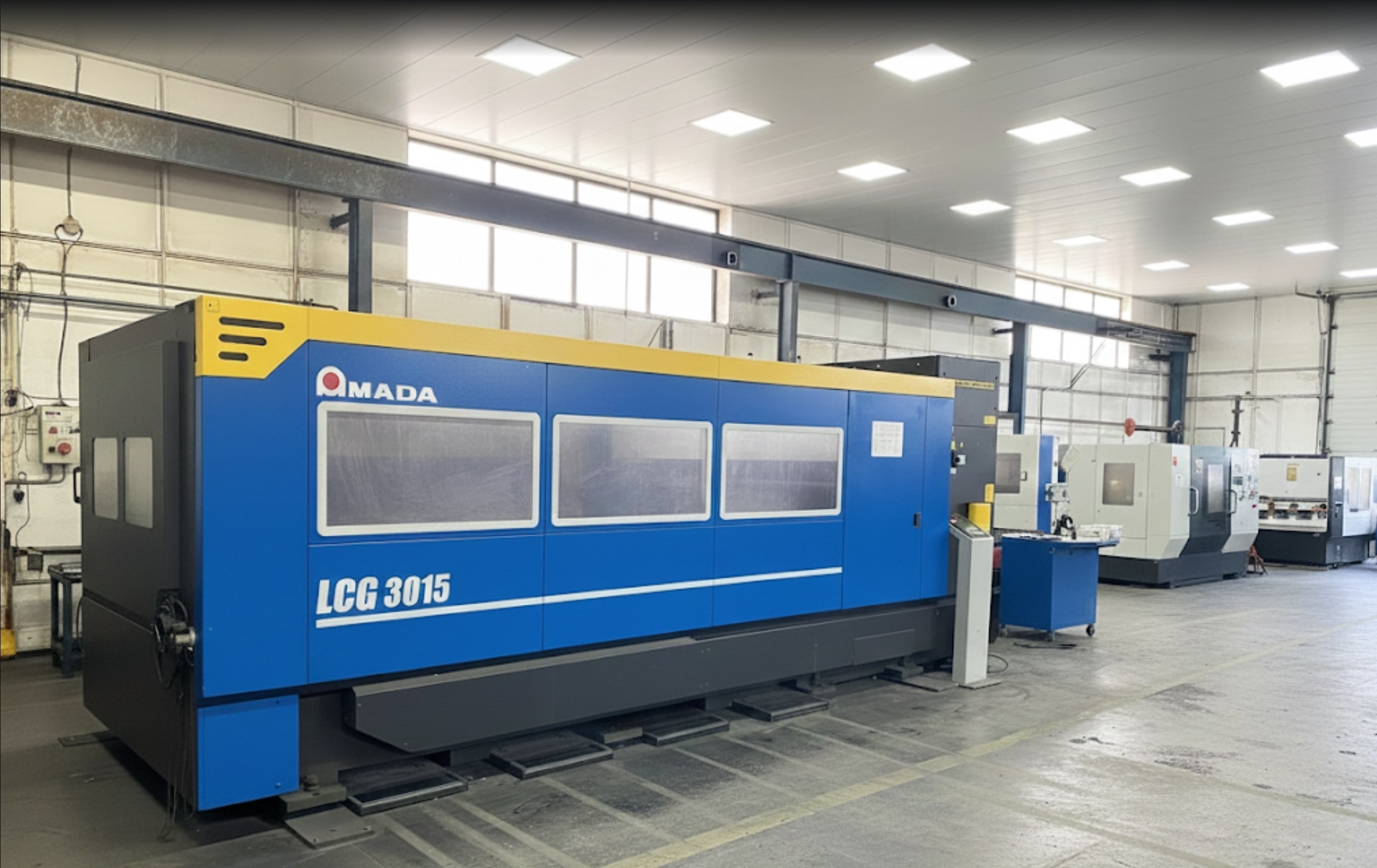

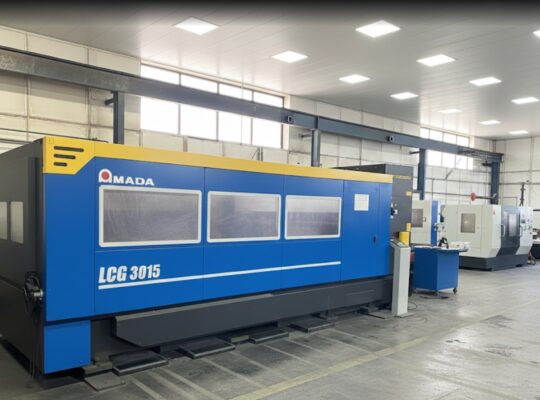

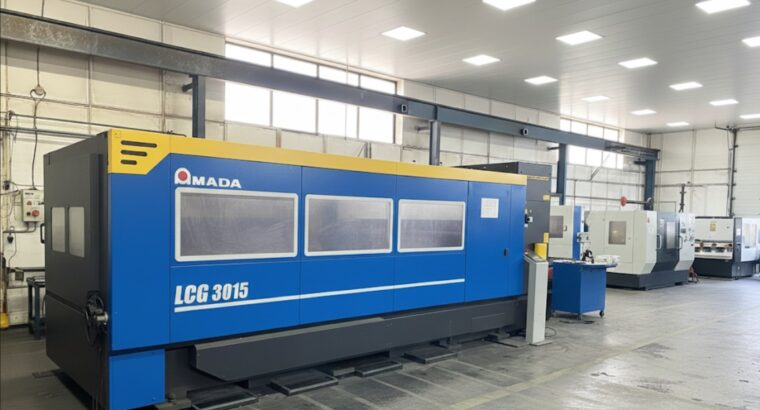

The Amada LCG 3015 is specifically engineered to deliver high-speed cutting and high-productivity for thin to medium-thickness materials. Known for its exceptional acceleration and precision, the LCG series incorporates a low center of gravity and a high-torque motion system. Whether equipped with a CO2 or Fiber laser source, this machine offers unmatched reliability and is a staple in high-end sheet metal fabrication shops globally.
| Feature | Specification Details |
|---|---|
| Maximum Sheet Size | 3,050 mm x 1,550 mm (120″ x 60″) |
| X-Axis Travel | 3,070 mm |
| Y-Axis Travel | 1,550 mm |
| Z-Axis Travel | 100 mm |
| Laser Output Power | 2.0 kW / 3.5 kW / 4.0 kW (Optional Fiber) |
| Positioning Accuracy | ± 0.01 mm |
| Max. Simultaneous Feed Rate | 170 m/min |
| Machine Weight | Approx. 8,200 kg (18,077 lbs) |
| CNC Control | AMNC 3i (Touch Screen) |
This technical profile is a part of the Nikgi Global Directory. We help connect international buyers with professional machinery dealers and manufacturers.
Join our marketplace for free and reach verified industrial buyers.
Disclaimer: Technical specifications are provided for reference purposes based on standard Amada LCG 3015 configurations. Always verify specific features with the manufacturer’s manual.
