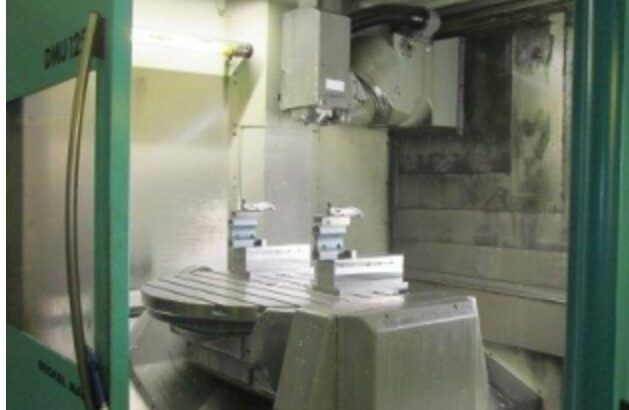

DMG DECKEL MAHO DMU 125P

5-Axis Simultaneous Universal Machining Center | Hi-Dynamics Edition

Product Overview

The DMU 125P duoBLOCK is a high-precision 5-axis universal machining center engineered by Deckel Maho (DMG). It features a unique portal-type design that provides maximum rigidity and thermal stability, making it ideal for the most challenging aerospace, medical, and mold-making components. With its integrated rotary table and swivel milling head, it allows for complex simultaneous machining of large parts up to 2,500 kg. This machine is a world-class solution for manufacturers who refuse to compromise on surface finish, accuracy, and cycle time.

Technical Specifications

Travels (X / Y / Z)1,250 x 1,000 x 1,000 mm
B-Axis (Swivel Head)-30° / +180° (Simultaneous)
C-Axis (Integrated Rotary Table)360,000° (Full 4th/5th Axis)
Spindle Speed10,000 – 18,000 RPM (SK50 / HSK 100)
Tool Changer (ATC)60 / 120 / 180 Positions
Max. Table Load2,500 kg
Control SystemHeidenhain iTNC 530 / Siemens 840D Powerline

Operational Dynamics & Mass

Machine Weight: approx. 14,500 kg

Rapid Traverse: 60 m/min (Linear Axes)

Cooling: Through-Spindle Coolant (40-80 Bar)

Origin: Made in Germany (Pfronten)

Engineering Excellence

  • duoBLOCK Technology: Highly rigid 3-point support for maximum machining stability and precision.
  • Electronic Compensation: Real-time monitoring of axis expansion to maintain micron-level accuracy throughout long shifts.
  • Large Work Envelope: Designed for oversized parts with minimal floor space requirements.
  • Productive Automation: Pallet changer ready for unmanned 24/7 production cycles.

Not Available
Showcase Listing

Availability Status: This unit is currently NOT for sale.

Note: This is a Showcase Listing created to demonstrate the technical capabilities and listing standards of the Nikgi platform. It serves as a benchmark for high-quality equipment presentation.

Do you have 5-axis machines or high-end centers for sale? You can register for free and list your equipment on our premium global network.

-
