Description

Type : Sell

Condition : Used

Warranty : No

Title:

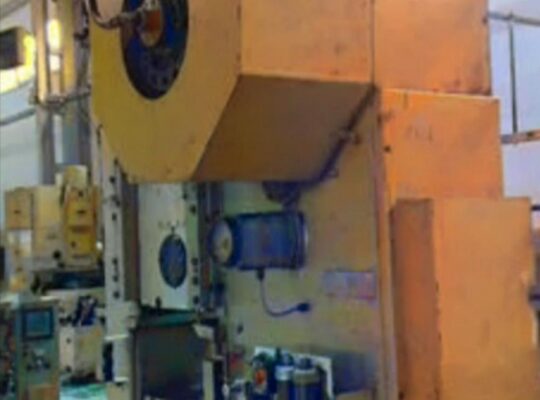

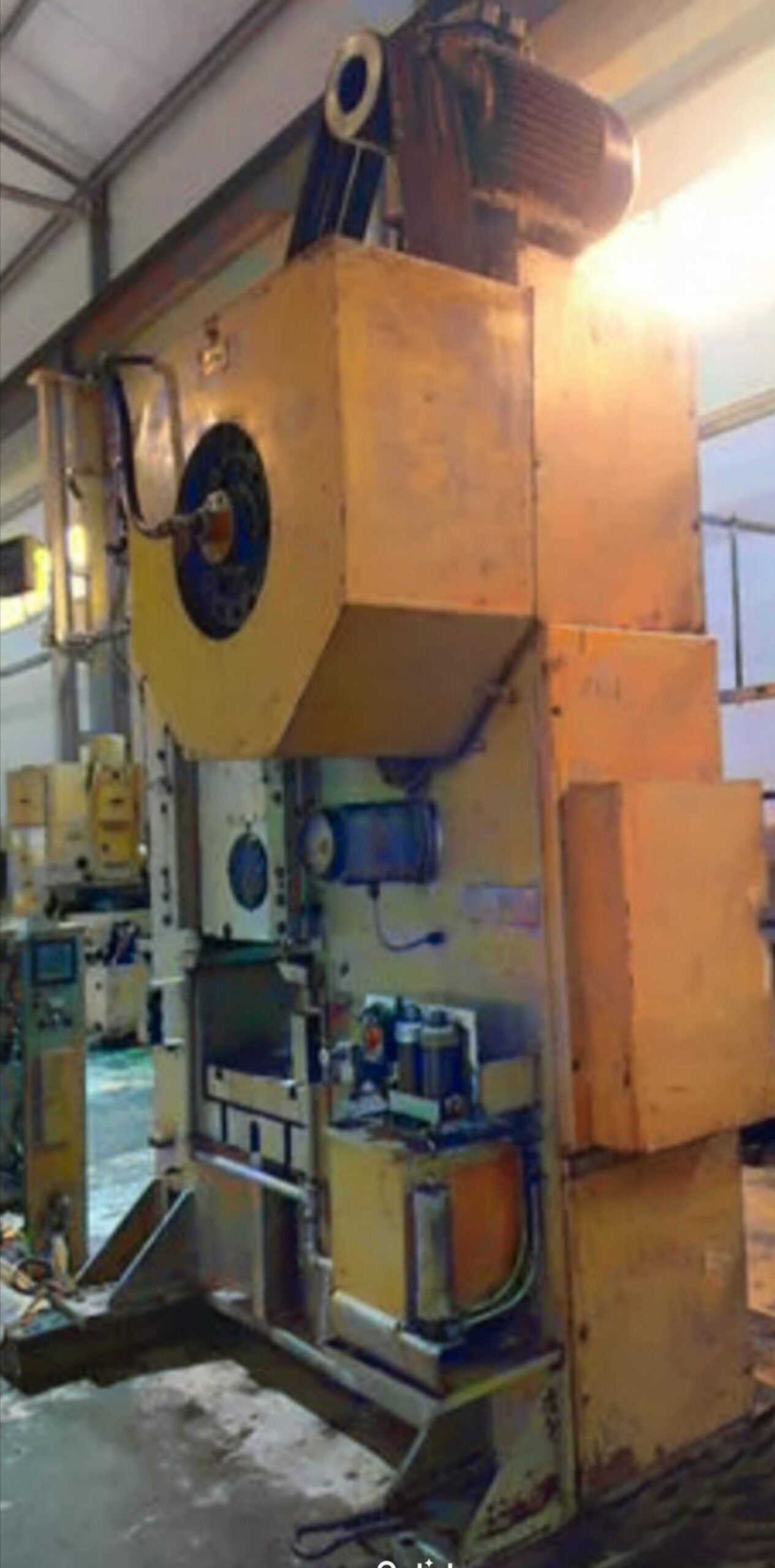

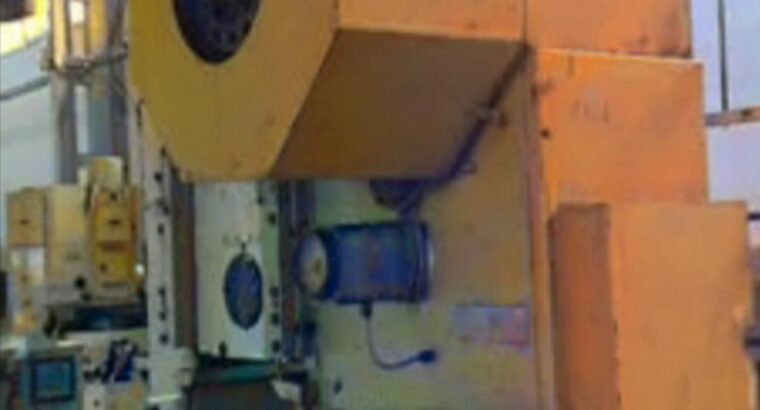

For Sale: Knuckle-Joint Cold Extrusion Press KB0032 – 160 Ton

Ad Text:
We are offering a high-quality, used **Knuckle-Joint Cold Extrusion Press model KB0032** (manufactured by Barnaul, Russia) in excellent working condition, suitable for demanding industrial forging applications.

Technical Specifications:
– Model: KB0032
– Type: Knuckle-Joint (Crank-Knee) Cold Extrusion Press
– Rated Capacity (Slide): 160 tons
– Slide Stroke: 160 mm
– Continuous Stroke Frequency: 50 strokes/min
– Max Single-Stroke Frequency: 20 strokes/min
– Shut-Height Adjustment: 16 mm
– Maximum Tool Shut-Height: 435 mm
– Bolster Plate Size: 630 × 630 mm
– Ram Size: 500 mm
– Overall Dimensions (L × W × H): 3622 × 2220 × 3622 mm
– Total Weight: approx. 11,460 kg
– Manufacturer: Barnaul, Russia

Additional Details:
– Ideal for efficient, high-volume cold forging operations.
– Available for inspection, with detailed photos and technical datasheet upon request.
– Delivery terms negotiable (e.g., FOB, CIF).

Tags:
#PressForSale #ColdExtrusionPress #KB0032 #KnuckleJointPress
#ForgingPress #UsedMachinery #IndustrialEquipment #BarnaulPress

NOT AVAILABLE

Availability Status: This machine is currently NOT for sale.

Note: This is a Reference Listing created to showcase the technical capabilities and listing standards of the Nikgi platform. It serves as a benchmark for high-quality equipment presentation.

Do you have a similar machine for sale? You can register for free and list your equipment to reach our premium global network of buyers and resellers.
