The Industry Standard for Mid-Size Offset Printing

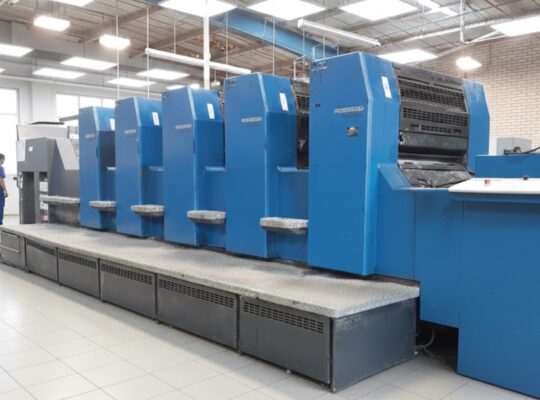

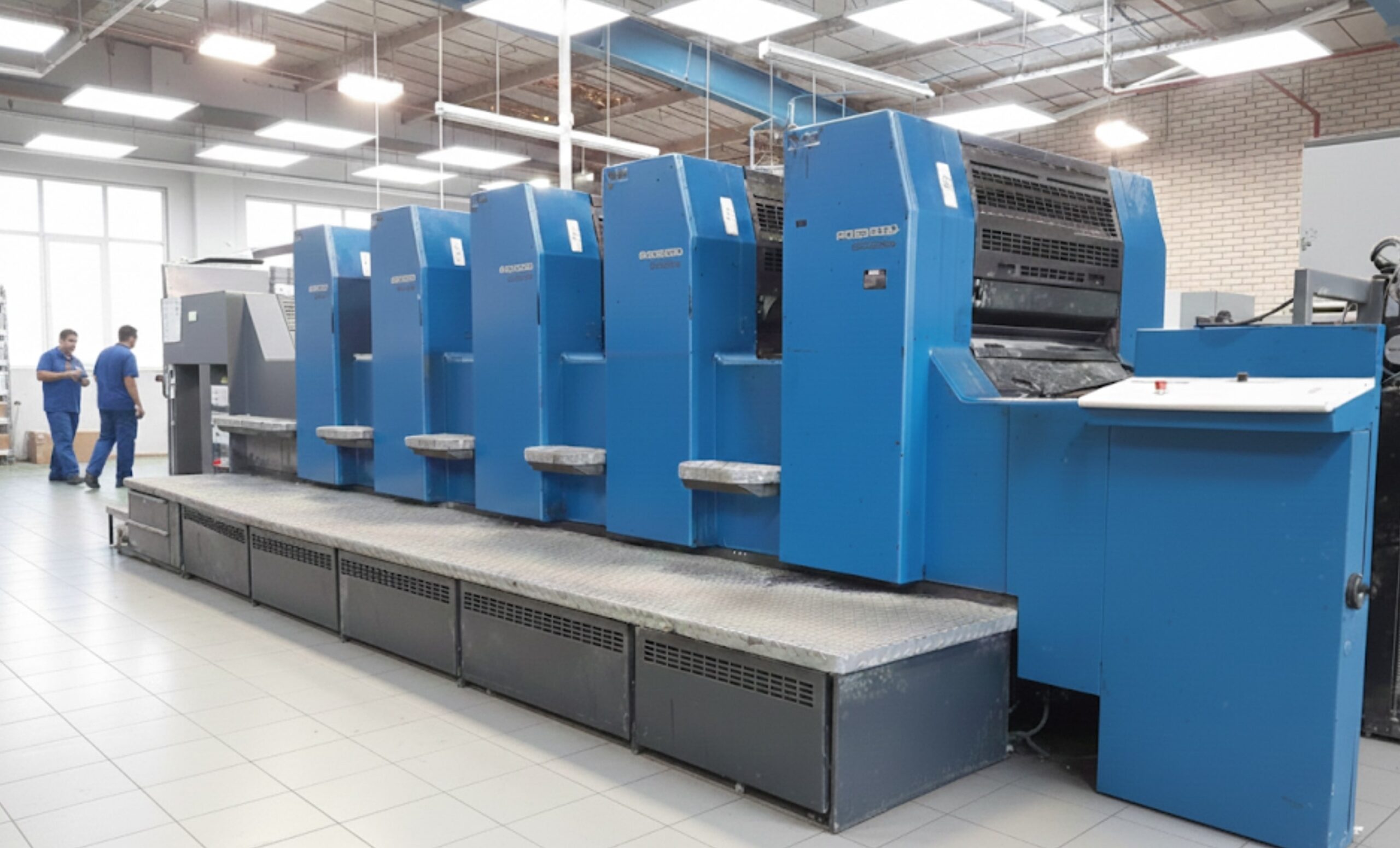

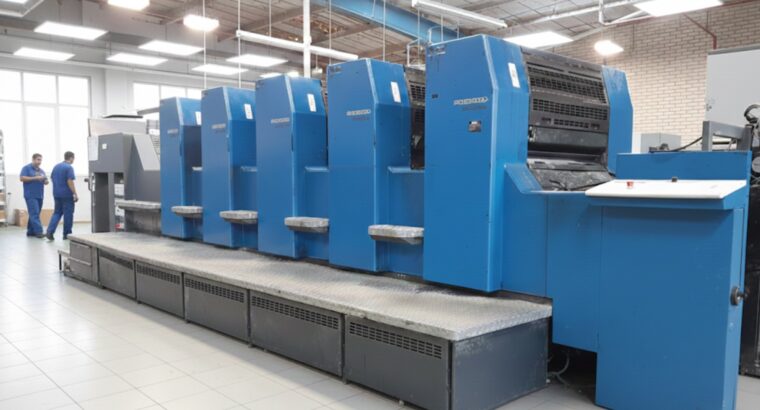

The Heidelberg Speedmaster SM 74 is a highly flexible, automated offset press designed for the medium-format market. It is world-renowned for its ability to handle a vast range of substrates, from thin paper to thick board. With its high production speeds and short makeup times, the SM 74 remains the most sought-after machine for commercial printers who require Swiss-watch precision with German engineering durability.
| Feature | Specification Details |
|---|---|
| Maximum Printing Speed | 15,000 sheets per hour |
| Max. Sheet Size | 530 mm x 740 mm (20.87″ x 29.13″) |
| Min. Sheet Size | 210 mm x 280 mm (8.27″ x 11.02″) |
| Thickness Range | 0.03 mm – 0.60 mm (0.0012″ – 0.024″) |
| Gripper Margin | 8 – 10 mm |
| Plate Size | 605 mm x 745 mm |
| Machine Weight (4-Color) | Approx. 13,000 kg (28,660 lbs) |
| Total Length (4-Color) | Approx. 7.3 Meters |
Explore the technical brilliance of the Heidelberg SM 74. Nikgi connects industrial professionals with the world’s most reliable printing machinery dealers.
Connect with buyers on our global platform.
Disclaimer: Technical data is for reference only and based on standard Heidelberg factory specifications. Year of manufacture and specific options can alter these parameters.
