High-Speed Dry Cutting Gear Hobbing Technology

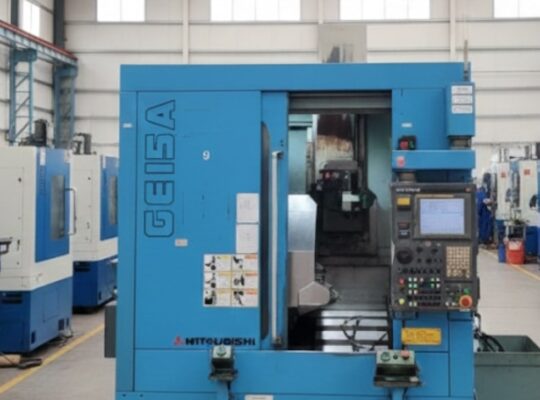

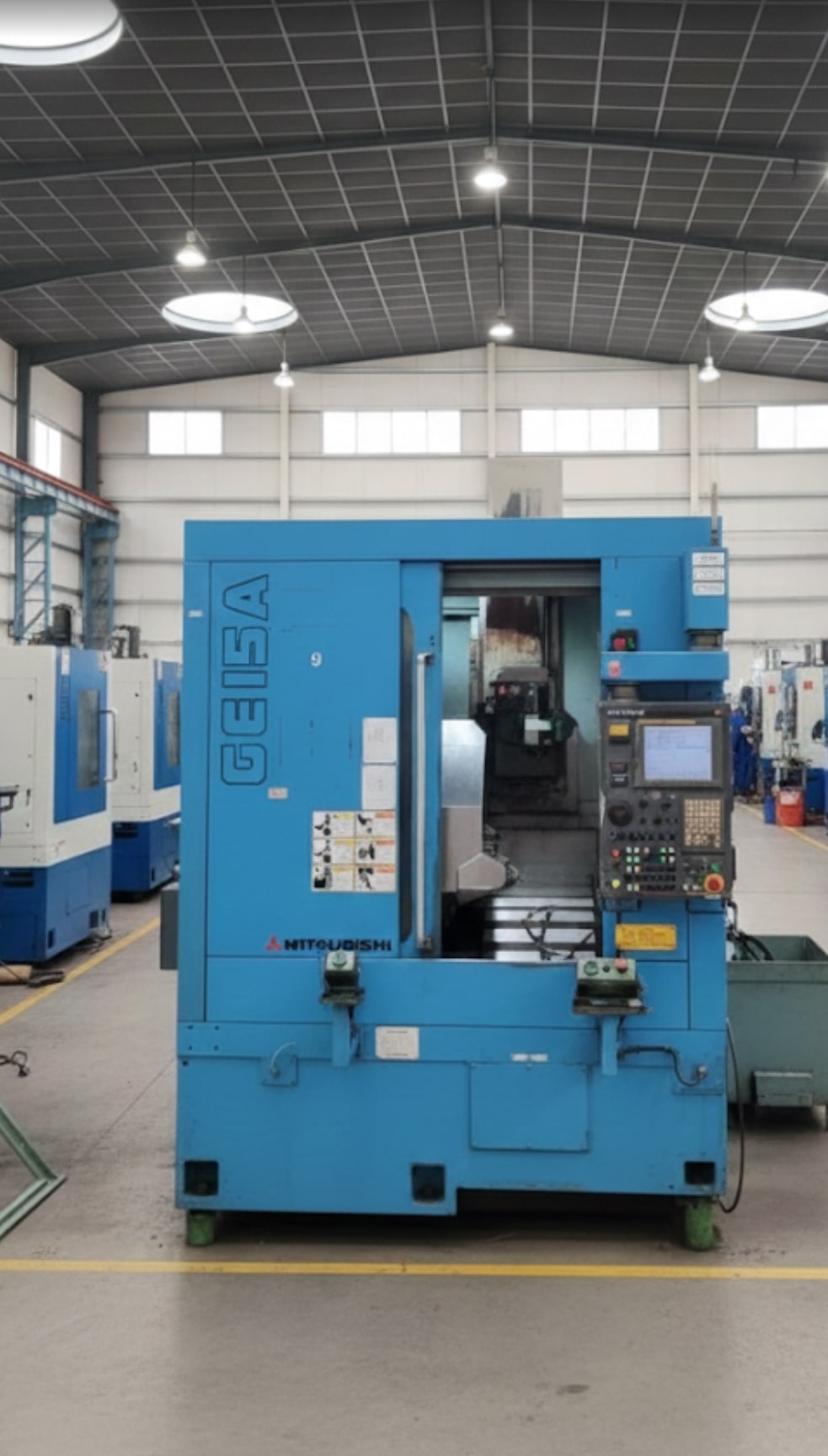

The Mitsubishi GE15A is a pinnacle of Japanese engineering in gear production. Specifically designed for high-speed “dry cutting,” it eliminates the need for coolant, making it environmentally friendly and cost-efficient. With its symmetrical machine structure and advanced thermal compensation, the GE15A provides exceptional stability and sub-micron precision for small to medium-sized gears, typically used in Automotive transmissions and high-end industrial robotics.
| Parameter | Technical Details |
|---|---|
| Max. Workpiece Diameter | 150 mm |
| Maximum Module | 3 mm |
| Max. Axial Travel | 300 mm |
| Max. Hob Diameter | 100 mm |
| Max. Hob Length | 220 mm |
| Max. Hob Speed | 6,000 RPM (High Speed) |
| Control Unit | Mitsubishi M700 CNC |
| Machine Weight | approx. 6,000 kg |
This Showcase Listing highlights the pinnacle of Japanese gear-cutting technology on the Nikgi industrial platform.
