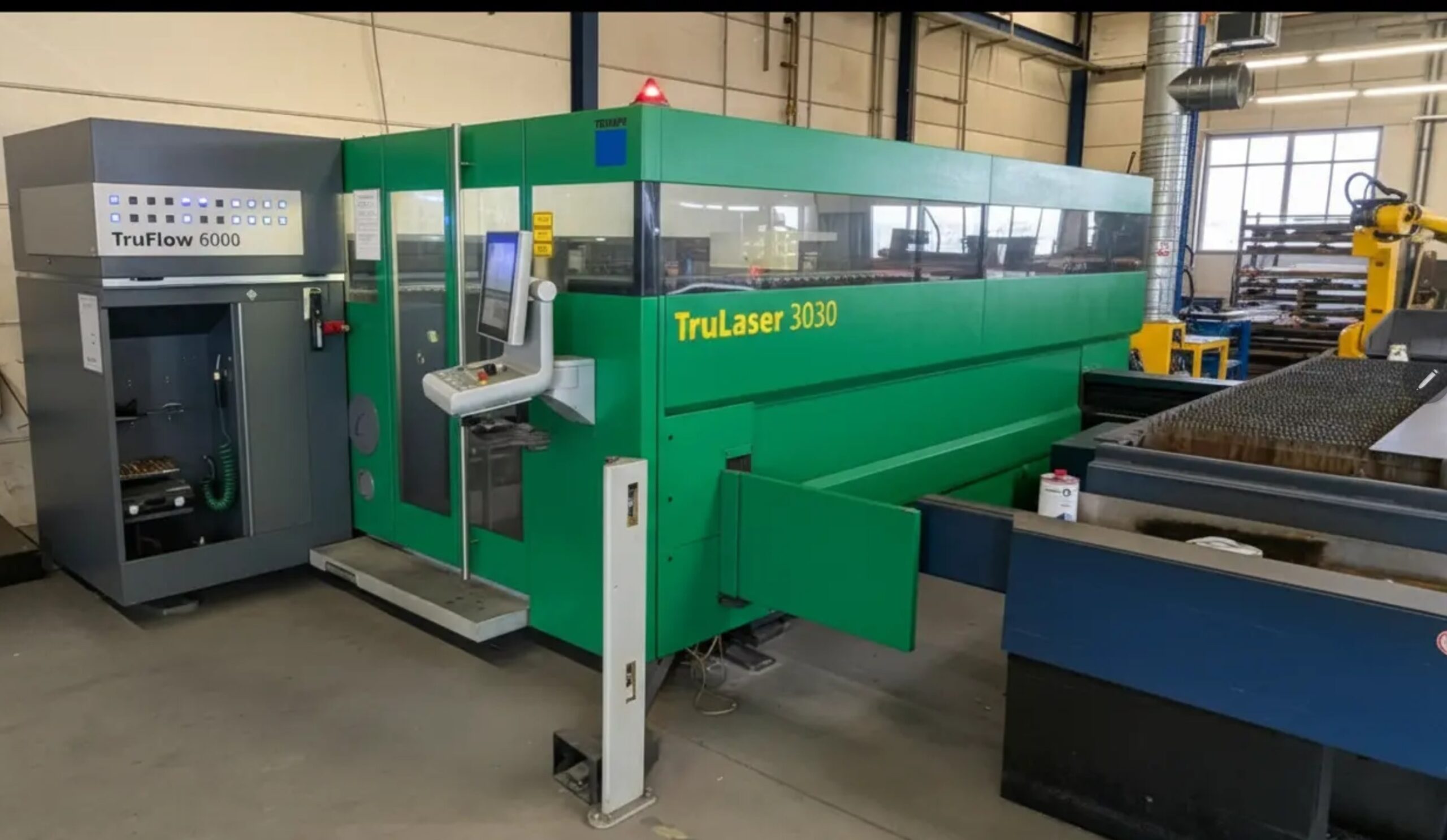

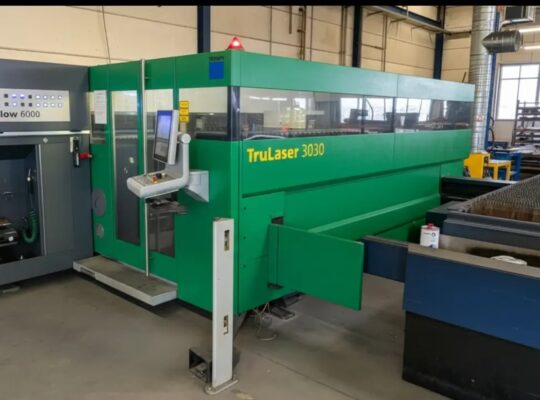

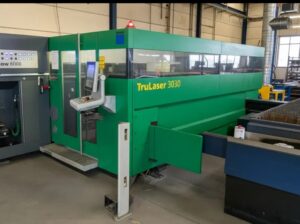

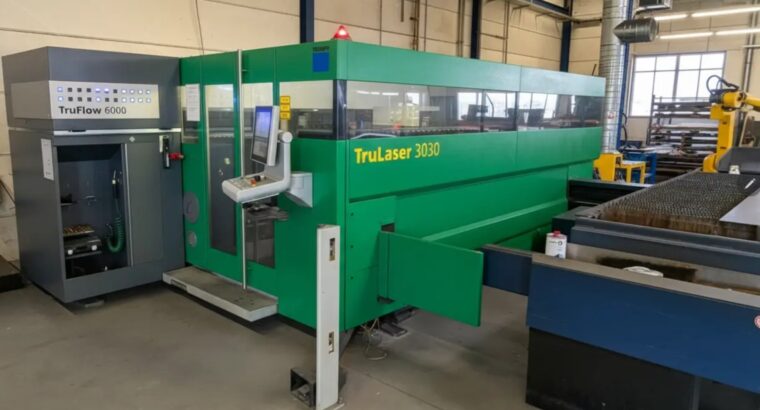

TRUMPF TruLaser 3030 Fiber

Description

The All-Around Precision Fiber Laser | German High-End Technology

Product Overview

The TRUMPF TruLaser 3030 Fiber represents the pinnacle of versatility and efficiency in laser cutting. Designed for high-speed processing of both thin and thick sheet metal, it utilizes a powerful solid-state laser (TruDisk) to cut through materials like mild steel, stainless steel, aluminum, and non-ferrous metals such as copper and brass with exceptional edge quality. Its single-cutting-head strategy and advanced automation options make it a top choice for smart factories requiring maximum uptime and minimal maintenance.

Technical Specifications

Working Area (X x Y)	3,000 x 1,500 mm
Laser Source	TruDisk 3001 / 4001 / 6001 (Fiber)
Max. Laser Power	3 kW, 4 kW, or 6 kW
Max. Sheet Thickness (Mild Steel)	20 – 25 mm
Max. Sheet Thickness (Stainless)	20 – 25 mm
Positioning Speed	140 m/min (Simultaneous)
Control System	TRUMPF CNC (integrated with Touch HMI)

Physical Profile & Capabilities

Machine Weight: approx. 12,000 kg

Dimensions (L x W): 9,300 x 4,600 mm

Automation: LiftMaster / Pallet Changer Ready

Origin: Made in Germany

Advanced Machine Technology

Single Cutting Head Strategy: Cuts all material thicknesses with a single head, reducing setup times significantly.
High-Speed Eco: Special nozzle design that reduces gas consumption by up to 70% while increasing speed.
Drop&Cut: Integrated camera system that allows easy post-production of scrap sheets by simply dragging parts on the screen.
BrightLine Fiber: Ensures high-quality edges in thick stainless steel, comparable to CO2 laser results.

[attachment_0](attachment)

Not Available

Showcase Listing

Availability Status: This machine is currently NOT for sale.

Note: This is a Showcase Listing created to demonstrate the technical capabilities and listing standards of the Nikgi platform. It serves as a benchmark for high-quality equipment presentation.

Do you have a similar machine for sale? You can register for free and list your equipment to reach our premium global network of buyers and resellers.
