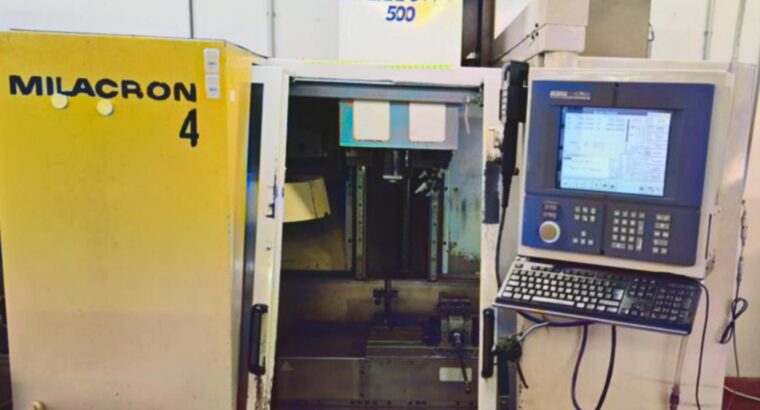

Vertical Machining Center CINCINNATI Arrow 500

Description

CINCINNATI Arrow 500 VMC

Precision Vertical Machining Center | High-Rigidity Production Power

Product Overview

The Cincinnati Arrow 500 is a high-performance Vertical Machining Center (VMC) designed for versatility, speed, and uncompromising accuracy. Featuring a robust cast-iron frame and precision linear guideways, this machine is ideal for both rapid prototyping and continuous industrial production. Known for its powerful spindle and the intuitive Acramatic 2100 control system, the Arrow 500 remains a favorite in the aerospace and automotive sectors for its ability to maintain tight tolerances under heavy milling conditions.

Technical Specifications

Travels (X / Y / Z)	510 x 510 x 510 mm
Table Size	700 x 520 mm
Spindle Speed	60 – 6,000 / 8,000 RPM
Spindle Taper	BT 40 / CAT 40
Tool Changer (ATC)	21 Stations (Carousel Style)
Rapid Traverse Rate	24 m/min (X, Y, Z)
Control System	Acramatic 2100 / Fanuc 0i-MC

Operational Profile & Dimensions

Machine Weight: approx. 3,100 kg

Floor Space (L x W): 2,000 x 2,400 mm

Spindle Drive: 7.5 kW / 11 kW

Origin: USA / UK (Cincinnati Milacron)

Operational Advantages

High Stability Frame: Heavy casting design provides maximum vibration absorption during high-speed milling.
Rapid Tool Changes: The side-mounted carousel ATC ensures quick tool transitions, minimizing idle time.
Precision Linear Guides: High-quality linear guideways on all axes ensure smooth motion and excellent positioning accuracy.
Integrated Cooling System: High-volume coolant pump for effective chip flushing and tool longevity.
